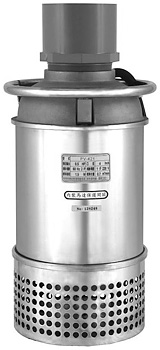

Central® PV Series Axial Flow Pumps (Propeller Pump)
  • High flow rate, low head pressure
  • Fresh water applications
  • Continuous duty submersible pump
  • High efficiency and low power consumption
  • Low horsepower, high capacity design
  • Built-in thermal protector


USAGES

  • High volume water transfer at low heads
  • Agricultural: Irrigation, water drainage
  • Aquacultural: Water circulation
  • General facilities: Pond waterfall, circulation, transfer and drainage
  • Light marine water applications

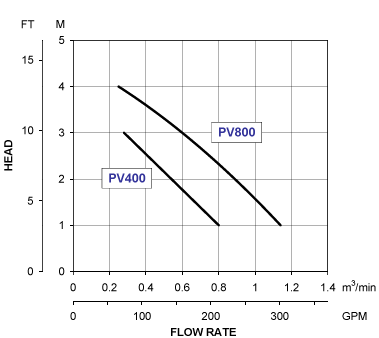

PERFORMANCE: PV_Curve
PV_Series_Axial_Flow_Pump

PV_PUMPS
SPECIFICATION
Model PV-411
PV-421		 PV-423
PV-433
PV-443		 PV-821 PV-823
PV-833
PV-843
Motor Output Rating 0.4 kW, 1/2 HP 0.75 kW, 1 H
Voltage 110V~230V 220V~40V 220V~230V 220V~240V
Motor Phase 1 3 1 3
Discharge Size 100 mm, 4 inch 100 mm, 4 inch
Rated Head 1.5 mm, 5 ft 1.5 mm, 5 ft
Rated Flow Rate 0.7 m3/min, 42 m3/hr
185 gpm, ~11,000 gph		 1 m3/min, 60 m3/hr
264 gpm, ~16,000 gph
Maximum Head 3 m, 10 ft 4 m, 13 ft
Maximum Flow Rate 0.8 m3/min, 48 m3/hr
211 gpm, ~13,000 gph		 1.2 m3/min, 72 m3/hr
317 gpm, ~19,000 gph
Power Cable 6 m, 20 ft 6 m, 20 ft
Weight 20 kg, 44 lb 20 kg, 44 lb
Dimension ø240 mm x 470 mm H, ø9.5 in x 18.5 in H

Specifications are subject to change without notice


PV- [M] [V] [P]
  4 1 1 [M] 0.4 kW (1/2 HP) or 0.75 kW (1 HP) Output
8 2 3 [V] Voltage 110V to 440V
  3   [P] Single or Three Phase Motor
4
