Micro Water Pump

Central^® AC/DC 5~24 Volt Micro Water Pump
Ultra compact DC water pump for OEM applications
Compact AC/DC water pump High pressure capacity Durable performance Low power consumption Submersible construction No rotor No ceramic shaft No bearing No impeller Low or no maintenance

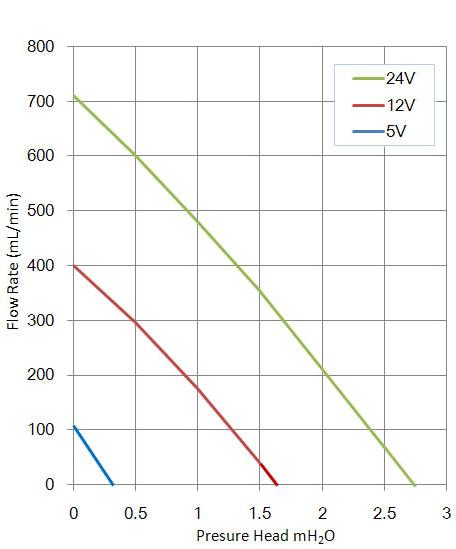

Model: N3 5~24V 60Hz 100% Flow Rate vs. Head Pressure

Performance of pump can be adjusted by input voltage, operating frequency and duty cycle.

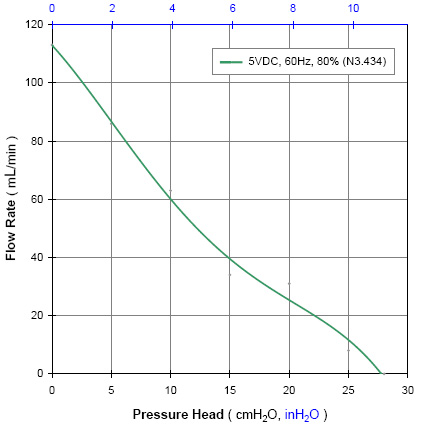

Model:N3 5V DC 60Hz 80% Curve	Model:N3

Performance of pump can be adjusted by input voltage (5VDC), operating frequency (60Hz) and duty cycle (80%).
SPECIFICATIONS:

Temperature Range (Liquid):

10°C ~ 70°C, max -20°C ~ 80°C, 50°F ~ 158°F, max -4°F ~ 176°F

Storage Temperature:

-20°C ~ 80°C, -4°F ~ 176°F

Designed Liquid Temperature:

60°C, 140°F

Relative Humidity:

Can be lower than 85%

Acceptable fluids:

Pure water (distilled water), R-OH solution, and other fluids on request

Inlet & Outlet Size:

4 mm ID, 7 mm OD, 1/4" barb

Pump Dimension:

14.5 mm D x 64 mm L, 0.57" D x 2.5" L

Pressure Head:

0.2 ~ 4 mH₂O, 2 ~ 40 kPa, pending input parameters

Operating Voltage Range:

5 ~ 24 V AC/DC (AC: less controller)

Current:

100 ~ 800 mA

Nominal Power:

4W ± 10%

Noise Level:

30 dB ± 15%

Weight:

< 30 g, < 1 oz

Operating Life:

44,000+ hours

Drive Signal:

PWM

Motor Type:

Carbon brushless, micro-reciprocating motor

Installation:

Inline and/or submersible

Orientation:

Any angle, preferably horizontal

Protection:

Clog and thermal protected

Compliance:

UL 60950, Standard for Information Technology Equipment

INSTALLATION GUIDE:

Pump many run dry for a few seconds.
Pump normally can draw water with configuration 1 to 3. For configuration 2, the maximum height (H) should not exceed 100 mm for normal operation.
The pump can be oriented horizontally or vertically to ground or in any angle. Horizontal to ground is normally preferred.

For OEM use, customization is available, please contact us for more information
