Central Linear Air Pumps (CT-6A~15A)

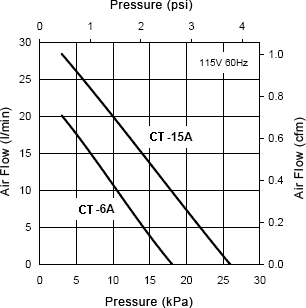

Line Air Pumps perfcurve

Line Air Pumps CT-15A

Product Features Applications
  • Steady airflow
  • Oil free, no contamination or pollution
  • Reliable intermittent or continuous duty operation
  • Long service life
  • Quiet and low vibration
  • Low energy consumption
  • Compact design and solid construction
  • Indoor or outdoor operation
  • Thermal protection
  • Simple maintenance
    		•
  • Aeration
  • Air purification
  • Air sampling
  • Bubble bath
  • Gas analyzer
  • Liquid agitation
  • Medical and scientific equipments
  • Pneumatic beds; air mattresses
  • Wastewater treatment; aerobic treatment
  • Various industry

    • Specifications
    Model Voltage Rated Pressure Rated Performance Rated Input Power Sound Level Weight Certification
    CT-6A 115V 230V 10 kPA
    (1.4 psi)    		 11 lpm (0.4 cfm) 13W 27 dB 2.4 kg
    (5.3 lb)    		 UL
    CT-15A 115V 230V 10 kPA
    (1.4 psi)    		 20 lpm (0.7 cfm) 26W 29 dB 2.4 kg
    (5.4 lb)    		 UL
    Specifications are subject to change without notice

    Pressure Vacuum
    Line Air Pumps CT-6A Line Air Pumps CT-6SA
    CT-6A / 15A

    		CT-6SA / 15SA

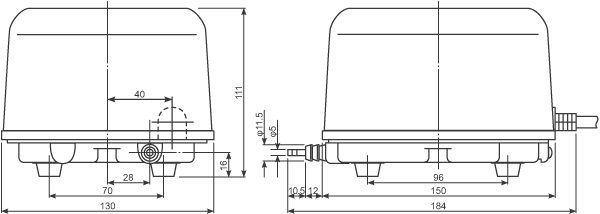

    Dimensions
    Line Air Pumps CT-6A Dimensions
    Unit (mm)
