Central Linear Air Pumps (CT-30~80)
Line Air Pumps perfcurve

Line Air Pumps CT-40

Product Features Applications
  • Steady airflow
  • Oil free, no contamination or pollution
  • Reliable intermittent or continuous duty operation
  • Long service life
  • Quiet and low vibration
  • Low energy consumption
  • Compact design and solid construction
  • Indoor or outdoor operation
  • Thermal protection
  • Simple maintenance
    		•
  • Aeration
  • Air purification
  • Air sampling
  • Bubble bath
  • Gas analyzer
  • Liquid agitation
  • Medical and scientific equipments
  • Pneumatic beds; air mattresses
  • Wastewater treatment; aerobic treatment
  • Various industry

    • Specifications
    Model Voltage Frequency Rated Pressure Rated Performance Rated Power Sound Level Discharge O.D. Weight
    CT-30 115V 230V 50/60 Hz 0.15 bar
    (2.18 psi)    		 - - 32 dB 18 mm
    5/8 in    		 5.6 kg
    12.5 lb
    CT-40 115V 230V 50/60 Hz 0.15 bar
    (2.18 psi)    		 48 lpm
    (1.7 cfm)    		 46 W 36 dB 18 mm
    5/8 in    		 5.6 kg
    12.5 lb
    CT-60 115V 230V 50/60 Hz 0.15 bar
    (2.18 psi)    		 68 lpm
    (2.4 cfm)    		 60 W 38 dB 18 mm
    5/8 in    		 6.5 kg
    14.4 lb
    CT-80 115V 230V 50/60 Hz 0.15 bar
    (2.18 psi)    		 85 lpm
    (3.0 cfm)    		 85 W 39 dB 18 mm
    5/8 in    		 6.5 kg
    14.4 lb
    AL-40 - normal continuous operating range: 0.05 - 0.20 bar
    AL-60, 80 - normal continuous operating range: 0.05 - 0.25 bar
    Specifications are subject to change without notice

    Pressure Pressure
    Line Air Pumps CT-30/40 Line Air Pumps CT-60/80
    CT-30 / 40

    		CT-60 / 80

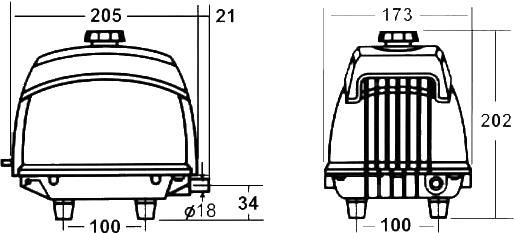

    Dimensions
    Line Air Pumps CT-30/40/60/80 Dimensions
    Unit (mm)
