Central Linear Air Pumps (CT-250~400)
Line Air Pumps perfcurve

Line Air Pumps CT-250/300/400

Product Features Applications
  • Steady airflow
  • Oil free, no contamination or pollution
  • Reliable intermittent or continuous duty operation
  • Long service life
  • Quiet and low vibration
  • Low energy consumption
  • Compact design and solid construction
  • Indoor or outdoor operation
  • Thermal protection
  • Simple maintenance
    		•
  • Aeration
  • Air purification
  • Air sampling
  • Bubble bath
  • Gas analyzer
  • Liquid agitation
  • Medical and scientific equipments
  • Pneumatic beds; air mattresses
  • Wastewater treatment; aerobic treatment
  • Various industry

    • Specifications
    Model Voltage Frequency Rated Pressure Rated Performance Rated Power Sound Level Discharge Fitings Weight
    CT-250 115V 230V 50/60 Hz 20 kPa
    (2.9 psi)    		 275 lpm
    (9.7 cfm)    		 285 W 46 dB 3/4" FPT,
    26 mm, 1 in    		 18.8 kg
    41.5 lb
    CT-300 115V 230V 50/60 Hz 20 kPa
    (2.9 psi)    		 350 lpm
    (12.4 cfm)    		 336 W 47 dB 3/4" FPT,
    26 mm, 1 in    		 22.1 kg
    48.8 lb
    CT-400 115V 230V 50/60 Hz 20 kPa
    (2.9 psi)    		 435 lpm
    (15.4 cfm)    		 504 W 49 dB 3/4" FPT,
    26 mm, 1 in    		 22.2 kg
    48.9 lb
    Specifications are subject to change without notice

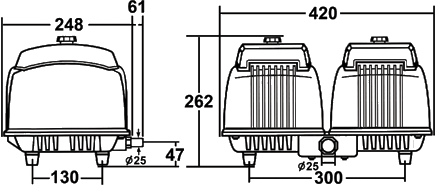

    Dimensions
    Line Air Pumps CT-250/300/400 Dimensions
    Unit (mm)
