Central Linear Air Pumps (CT-100~200)
Line Air Pumps perfcurve

Line Air Pumps CT-100/120/150/200

Product Features Applications
  • Steady airflow
  • Oil free, no contamination or pollution
  • Reliable intermittent or continuous duty operation
  • Long service life
  • Quiet and low vibration
  • Low energy consumption
  • Compact design and solid construction
  • Indoor or outdoor operation
  • Thermal protection
  • Simple maintenance
    		•
  • Aeration
  • Air purification
  • Air sampling
  • Bubble bath
  • Gas analyzer
  • Liquid agitation
  • Medical and scientific equipments
  • Pneumatic beds; air mattresses
  • Wastewater treatment; aerobic treatment
  • Various industry

    • Specifications
    Model Voltage Frequency Rated Pressure Rated Performance Rated Power Sound Level Discharge O.D. Weight
    CT-100 115V 230V 50/60 Hz 0.18 bar
    (2.6 psi)    		 113 lpm
    (4 cfm)    		 120 W 41 dB 18 mm
    11/16 in    		 8.3 kg
    18.2 lb
    CT-120 115V 230V 50/60 Hz 0.2 bar
    (2.9 psi)    		 130 lpm
    (4.6 cfm)    		 124 W 42 dB 18 mm
    11/16 in    		 8.3 kg
    18.2 lb
    CT-150 115V 230V 50/60 Hz 0.2 bar
    (2.9 psi)    		 160 lpm
    (5.6 cfm)    		 160 W 44 dB 18 mm(11/16 in)
    or
    26 mm (1 in)    		 10.1 kg
    22.3 lb
    CT-200 115V 230V 50/60 Hz 0.2 bar
    (2.9 psi)    		 200 lpm
    (7.0 cfm)    		 261 W 45 dB 18 mm(11/16 in)
    or
    26 mm (1 in)    		 10.1 kg
    22.3 lb
    Specifications are subject to change without notice

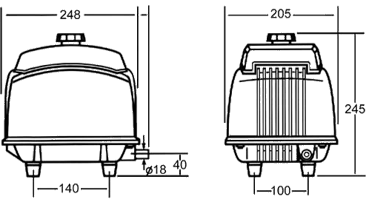

    Dimensions
    Line Air Pumps CT-100/120/150/200 Dimensions
    Unit (mm)
